libkwsgmain.so花指令分析

10.5.40.26392 去花

直接查看jni_onload，反汇编都不行

1
2
3
.text:00053744 03 B5                       PUSH            {R0,R1,LR}
.text:00053746 01 48                       LDR             R0, =6
.text:00053748 00 F0 04 F8                 BL              loc_53754

到这儿一直正常,ida在进行反汇编的时候依然能正常的识别出来二进制代码所走的流程,当走到下方的代码的时候ida这时反汇编不正常

1
2
3
4
5
6
7
.text:00053754 B9 F7 A4 EB                 BLX             sub_CEA0
.text:00053758 AC 01                       LSLS            R4, R5, #6
.text:0005375A 00 00                       MOVS            R0, R0
.text:0005375C C4 01                       LSLS            R4, R0, #7
.text:0005375E 00 00                       MOVS            R0, R0
.text:00053760 DC 01                       LSLS            R4, R3, #7
.text:00053762 00 00                       MOVS            R0, R0

那么我们看下sub_CEA0做了什么

1
2
3
4
5
6
7
8
9
10
11
12
.text:0000CEA0             sub_CEA0                                ; CODE XREF: .text:loc_7918↑p
.text:0000CEA0                                                     ; .text:loc_A8C0↑p ...
.text:0000CEA0
.text:0000CEA0             arg_8           =  8
.text:0000CEA0
.text:0000CEA0             ; __unwind {
.text:0000CEA0 01 10 CE E3                 BIC             R1, LR, #1
.text:0000CEA4 00 11 91 E7                 LDR             R1, [R1,R0,LSL#2]
.text:0000CEA8 0E 10 81 E0                 ADD             R1, R1, LR
.text:0000CEAC 08 E0 9D E5                 LDR             LR, [SP,#arg_8]
.text:0000CEB0 08 10 8D E5                 STR             R1, [SP,#arg_8]
.text:0000CEB4 03 80 BD E8                 POP             {R0,R1,PC}

BIC R1, LR, #1；R1 = LR and not #1
;把下一条指令的最低位,置为0,现在也就是说R1的值就是执行完CEA0函数后执行的地址值

LDR R1, [R1,R0,LSL#2]；R1 = R1+R04
；RO在上方赋值过了,R1又增加了0x104

ADD R1, R1, LR
;可以翻译为R1 = LR + LR(最低位置为0)+ R0*4

LDR LR, [SP,#arg_8]
;先从堆栈中保存LR寄存器的值

STR R1, [SP,#arg_8]
;然后用算出的R1覆盖掉堆栈的LR

POP {R0,R1,PC}
;恢复堆栈，但是现在PC已经被刚才计算出的R1覆盖了，下一条被执行的指令将要跳转到一个更远的地方

对上面代码的综上叙述，也就是根据在跳出CEA0这个函数的时候会根据R0的值,和LR的值,根据码表计算后赋值给PC寄存器从而跳转到一个地址,但是ida线性反汇编算不出来这个要跳转的地址。

使用脚本去花

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
import idc
from ida_bytes import patch_word

def put_unconditional_branch(source, destination):
    offset = (destination - source - 4) >> 1
    if offset > 2097151 or offset < -2097152:
        raise RuntimeError("Invalid offset")
    if offset > 1023 or offset < -1024:
        instruction1 = 0xf000 | ((offset >> 11) & 0x7ff)
        instruction2 = 0xb800 | (offset & 0x7ff)
        patch_word(source, instruction1)
        patch_word(source + 2, instruction2)
        patch_word(source + 4, 0xbf00)
        patch_word(source + 6, 0xbf00)
    else:
        instruction = 0xe000 | (offset & 0x7ff)
        patch_word(source, instruction)
        patch_word(source + 2, 0xbf00)
        patch_word(source + 4, 0xbf00)

def patch(ea):
    if idc.get_wide_word(ea) == 0xb503: # PUSH {R0,R1,LR}
        ea1 = ea + 2
        if idc.get_wide_word(ea) == 0xbf00:  # NOP
            ea1 += 2
        # ⽬的寄存器是通⽤寄存器 and ⽬的寄存器是r0 and 源寄存器是⽴即数
        if idc.get_operand_type(ea1, 0) == 1 and idc.get_operand_value(ea1, 0) == 0 and idc.get_operand_type(ea1,1) == 2:
            # get_operand_type 获取寄存器的类型
            index = idc.get_wide_dword(idc.get_operand_value(ea1, 1))
            print("index =", hex(index))
            ea1 += 2
            table = None
            # get_operand_type获取操作数的值
            # https://www.hex-rays.com/products/ida/support/idadoc/276.shtml
            if idc.get_operand_type(ea1, 0) == 7:
                print(222)
                # BL              loc_53754
                # 获取tabel表
                table = idc.get_operand_value(ea1, 0) + 4
            # elif idc.get_operand_type(ea1, 1) == 2:
            #     table = idc.get_operand_value(ea1, 1) + 4
            if table is None:
                print("Unable to find table")
            else:
                print("table =", hex(table))
                offset = idc.get_wide_dword(table + (index << 2))
                print("offset =", hex(offset))
                put_unconditional_branch(ea, table + offset)
                # 0x2f150`

def getAddrRange():
    start = ida_ida.inf_get_min_ea()
    size = ida_ida.inf_get_max_ea() - start
    # 将地址范围限定于text节
    for seg in idautils.Segments():
        seg = idaapi.getseg(seg)
        segName = ida_segment.get_segm_name(seg)
        if segName == ".text":
            start = seg.start_ea
            size = seg.size()
    return start, size

if __name__ == '__main__':
    # so中.text段的起始与结束位置
    start, size = getAddrRange()
    print("start: ", hex(start))
    print("size: ", hex(size))
    print("end: " ,hex(start + size))

    for i in range(0x7698, 0x662dc):
         patch(i)
    print("finish")

10.8.20.27623 去花

两个版本跨度有点大，直接从armv7整到armv8，花指令的内容也变了

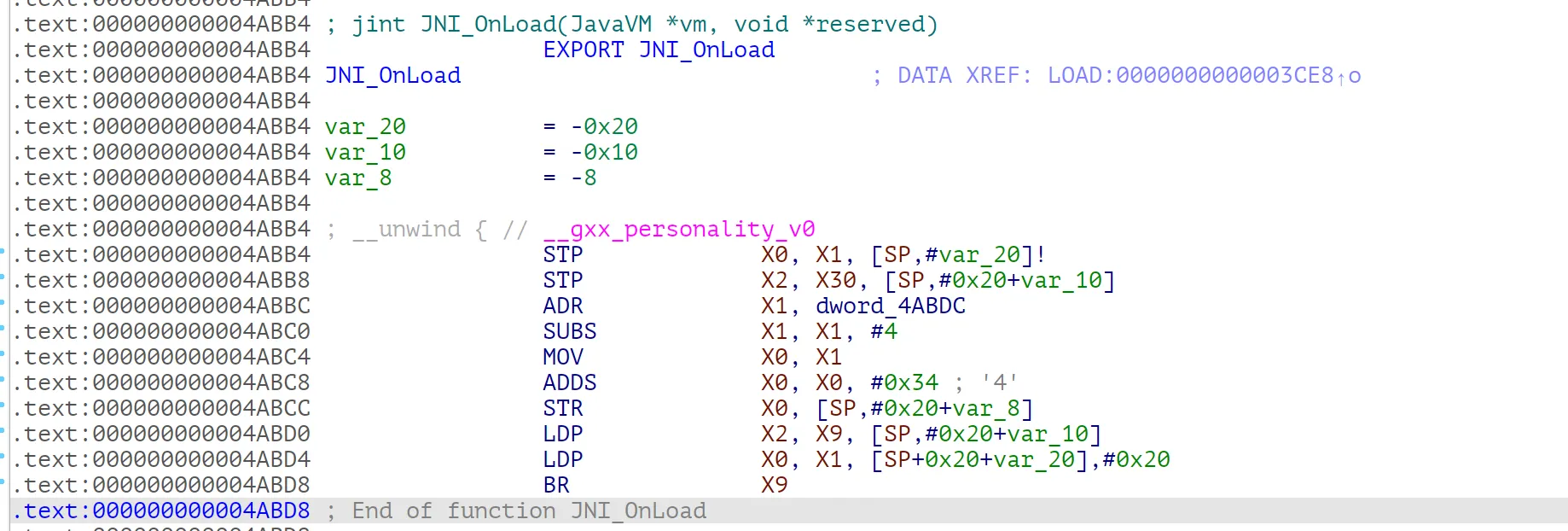

能够反编译了，但是反编译后是这样：

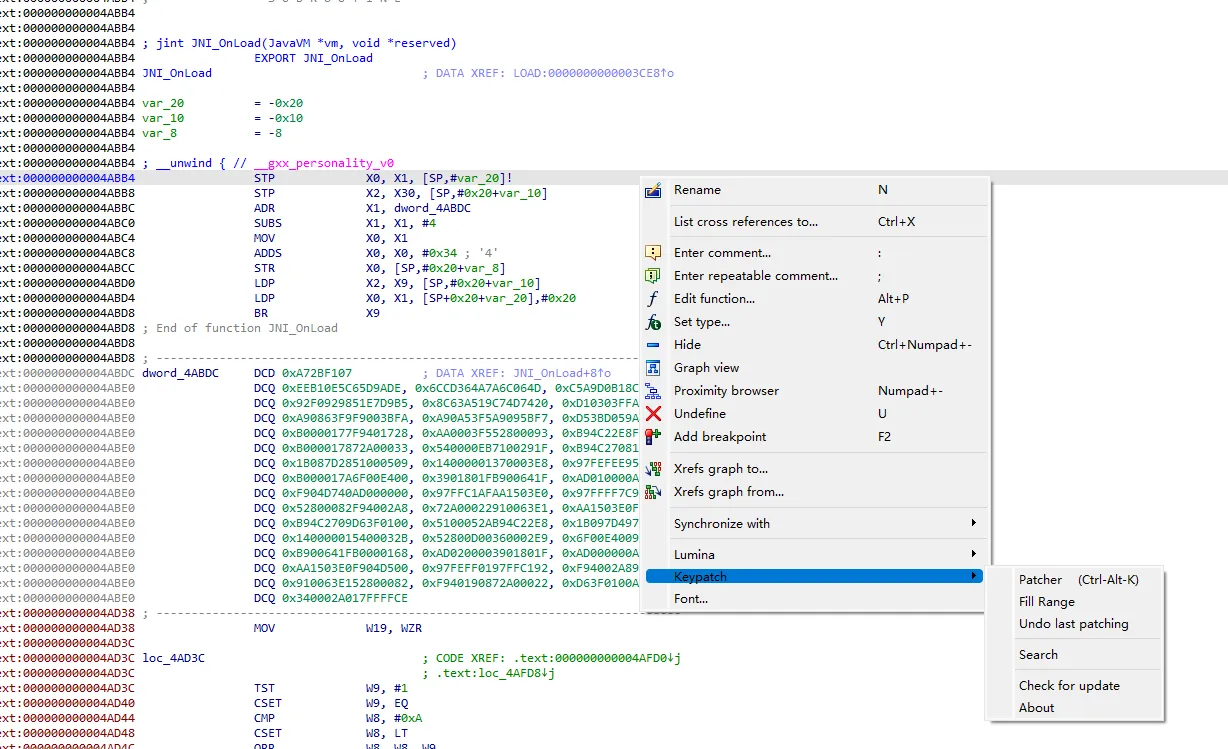

使用keypatch 去花


patch选择第一行

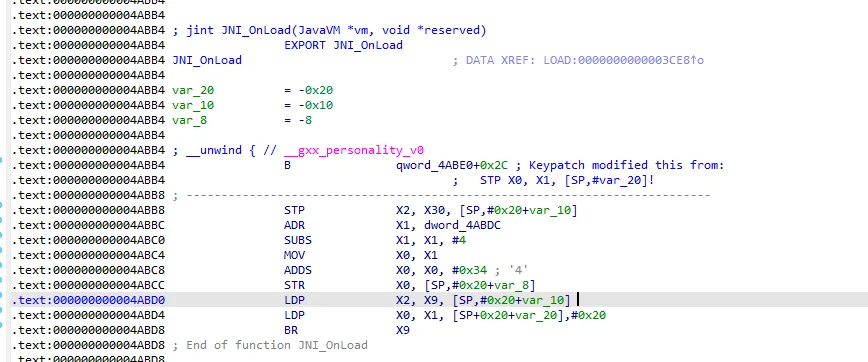

填入B 0x4AC0CLL

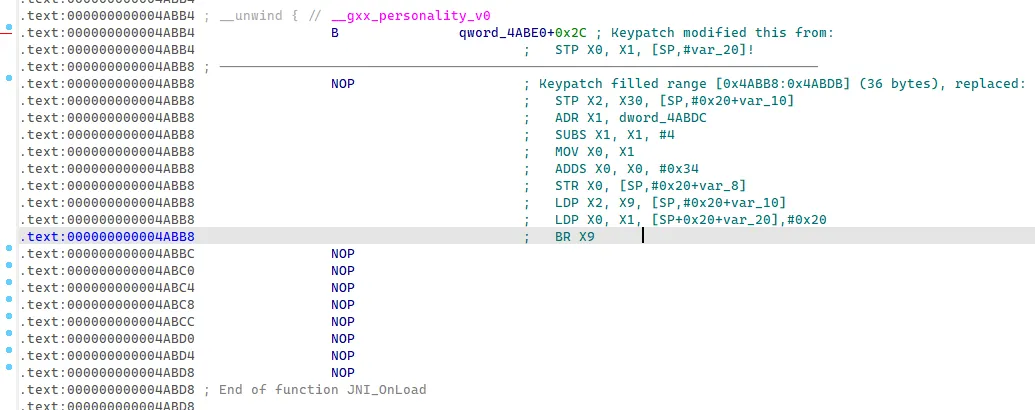

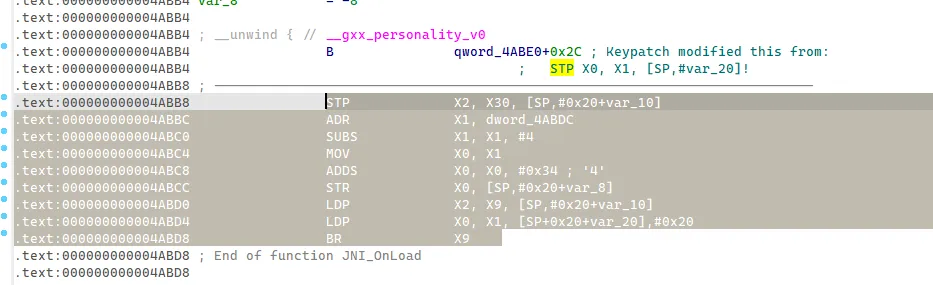

全部选中后nop掉

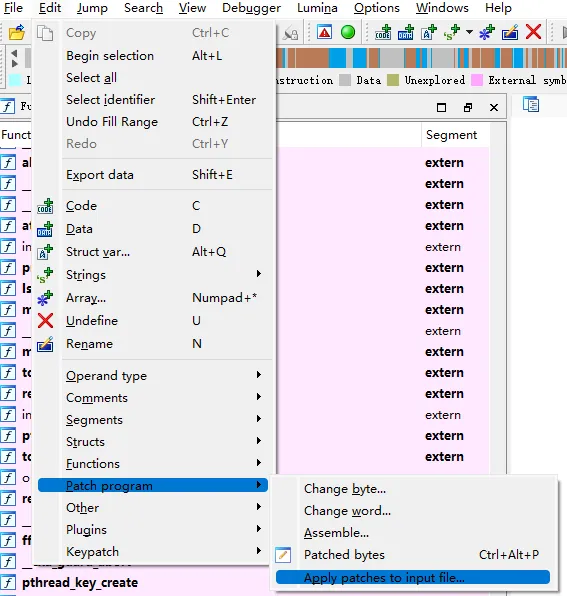

patch到so中

参考
